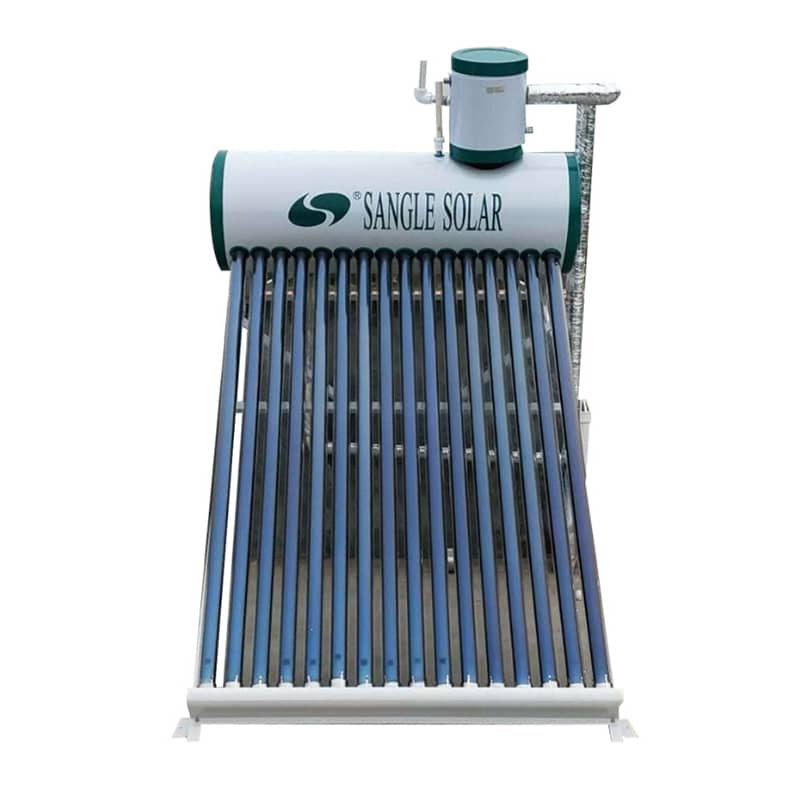

1.SUS304 stainless steel inner tank
2.The inner tank with one-time roll pressing technology without weld seam
3.High temperature and constant pressure polyurethane foam insulation layer
4.High efficiency heat collecting tube, 360 degree solar thermal film, all-round absorption of high-temperature heat

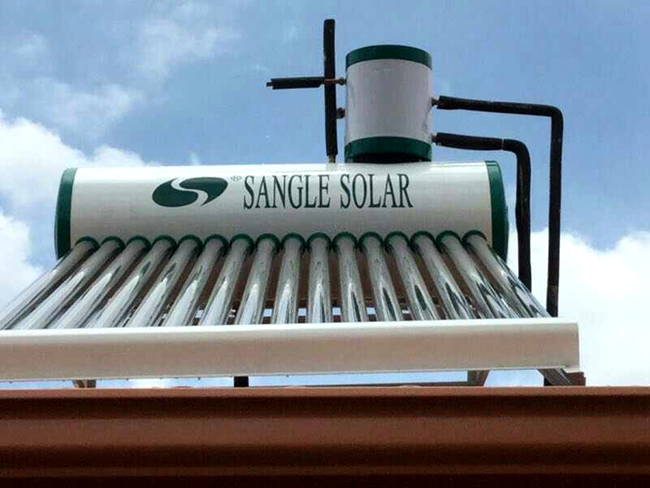

5.Flat roof and pointed roof bracket design, suitable for all kinds of roofs
Technical parameters :
1.Inner tank: SUS304/0.4mm
2.Outer tank: color-coated steel plate/0.4mm
3.Insulation: high density polyurethane foam 50mm
4.Vacuum tube: 58*1800mm
5.Bracket: galvanized steel 1.5mm/Aluminum alloy
Optional accessories :
1.Assistant tank - Cold water filling tank
2.Electrical heater
3.Solar Controller
Type | ø 58x1800mm | ||||||
Vacuum Tube | 16Pc | 18Pc | 20Pc | 24Pc | 30Pc | 36Pc | |
Effective Collector Area m² | 1.98 | 2.23 | 2.47 | 2.99 | 3.74 | 4.49 | |
Water Capacity (L) | 161 | 180 | 201 | 244 | 300 | 357 | |
Water Outlet Amount (L) | 117 | 131 | 145 | 173 | 216 | 259 | |
Length of Water Drum (mm) | 1370 | 1520 | 1670 | 1970 | 2420 | 2870 | |
Qty(set) | 20'ft | 42 | 39 | 38 | 32 | 26 | 16 |
40'hq | 103 | 96 | 90 | 79 | 65 | 58 |
