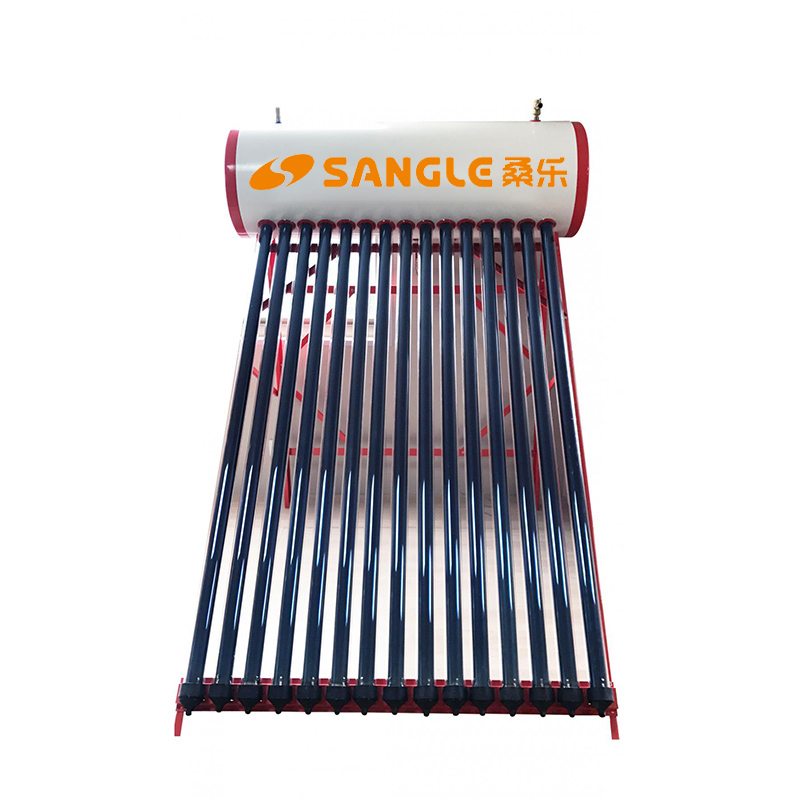

100L Heat Pipe Solar Water Heater

Adopts the best conduction performance metal- heat pipe (copper);

The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa;

Dual-purpose brackets for both flat and inclined roof.

  Contact Now
Product Details

Features:

1. Adopts the best conduction performance metal- heat pipe (copper).

2. Can be used all year round in the cold climate.

3. High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized water tank rapidly.

4. The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa.

5. No water in the tube, one tube broken don't influence the system working.

6. Dual-purpose brackets for both flat and inclined roof.



SpecificationMaterial/Diameter/Thickness of Outer TankLength of Outer Tank(mm)Length of Inner Tank(mm)Thermal Insulation Layer(mm)CapacityDaylighting Area (m²)
58/1800×12 pieces304-2B stainless steel/Ф380/1.2mm
1160
1110
50122L1.61
58/1800×15 pieces304-2B stainless steel/Ф380/1.2mm
1400135050150L2.03
58/1800×18 pieces
304-2B stainless steel/Ф380/1.2mm
16501600
50178L2.44
58/1800×20 pieces
304-2B stainless steel/Ф380/1.2mm
1800175050195L2.71
