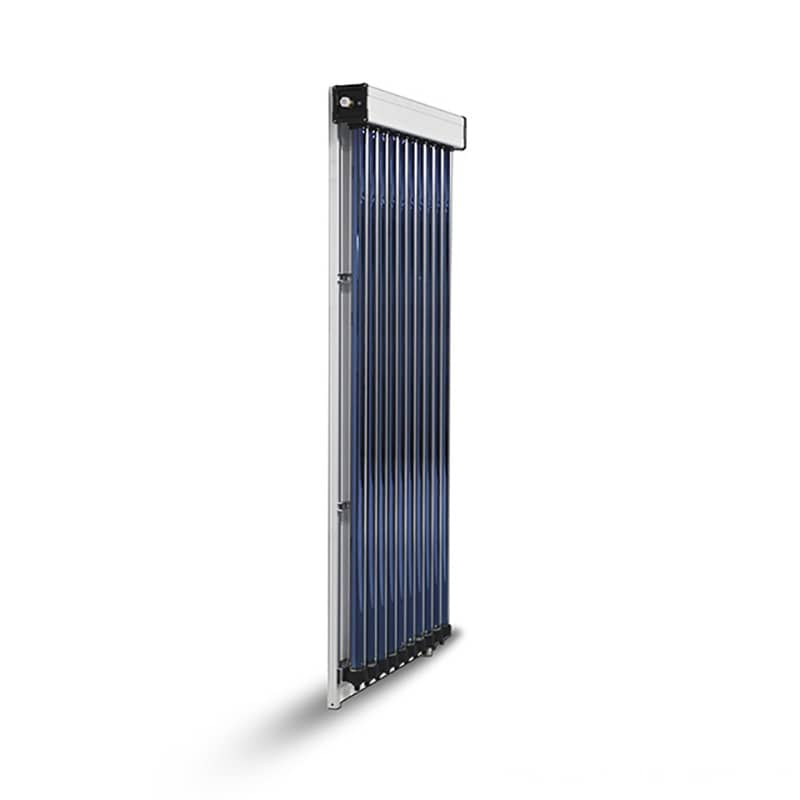

Vacuum Tube Solar Water Heater
Features :
1. Domestic hot water application , even commercial application
2. 150-300 Liters capacity , more choices
3. Easy to install ,can be mounted on the flat or pitched roof

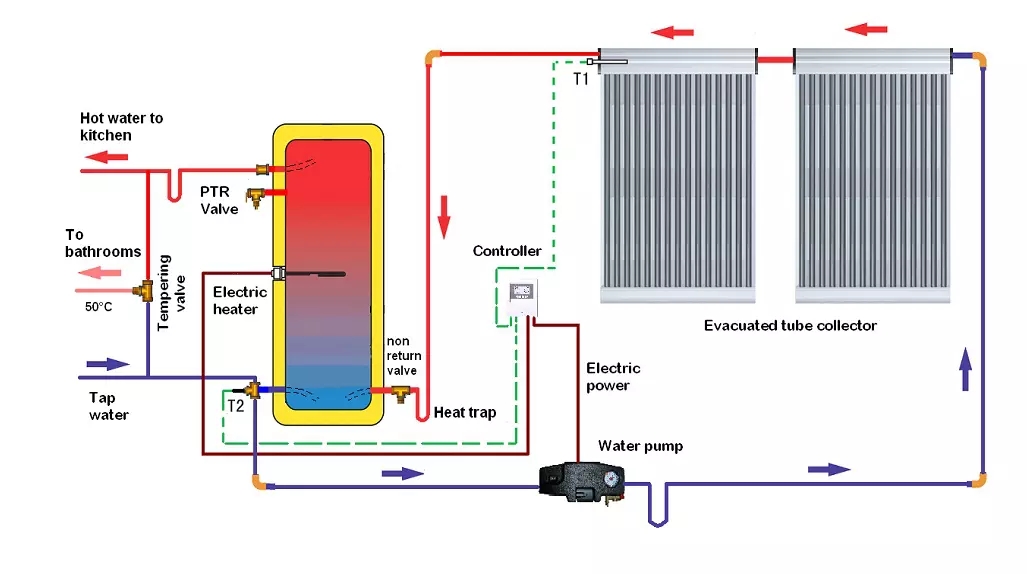

4. Split system, forced pump circulation, beautiful appearance after installation
5. Solar collector unit has higher performance in a cold climate
6. SUS304 stainless steel solar water tank
Product Details
Features :
1. Domestic hot water application , even commercial application
2. 150-300 Liters capacity , more choices
3. Easy to install ,can be mounted on the flat or pitched roof
4. Split system, forced pump circulation, beautiful appearance after installation
5. Solar collector unit has higher performance in a cold climate
6. SUS304 stainless steel solar water tank
Product parameter：
| Vacuum Pipe | Specification | φ58×1800 | φ58×1800 | φ58×1800 | φ58×1800 |
| Quantity (piece) | 18 | 20 | 24 | 30 | |
| Pipe distance (mm) | 75 | 75 | 75 | 75 | |
| Main Pipe of Flow Channel | Material | TP2 oxygen-free copper | TP2 oxygen-free copper | TP2 oxygen-free copper | TP2 oxygen-free copper |
| Pipe diameter (mm) | 35 | 35 | 35 | 35 | |
| Wall thickness (mm) | 0.8 | 0.8 | 0.8 | 0.8 | |
| Hot Pipe | Material | TP2 oxygen-free copper | TP2 oxygen-free copper | TP2 oxygen-free copper | TP2 oxygen-free copper |
| Pipe diameter (mm) | 8 | 8 | 8 | 8 | |
| Wall thickness (mm) | 0.6 | 0.6 | 0.6 | 0.6 | |
| Total Area of Heat Collector (m²) | 2.9 | 3.2 | 3.8 | 4.7 | |
| Daylighting Area (m2) | 1.8 | 2 | 2.4 | 3 | |
| Pressure Bearing Capability (Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | |
| External Dimensions (mm) | 1960*1480 | 1960*1630 | 1960*1930 | 1960*2380 | |
| Net Weight (KG) (45ºC) | 68 | 76 | 92 | 114 | |
