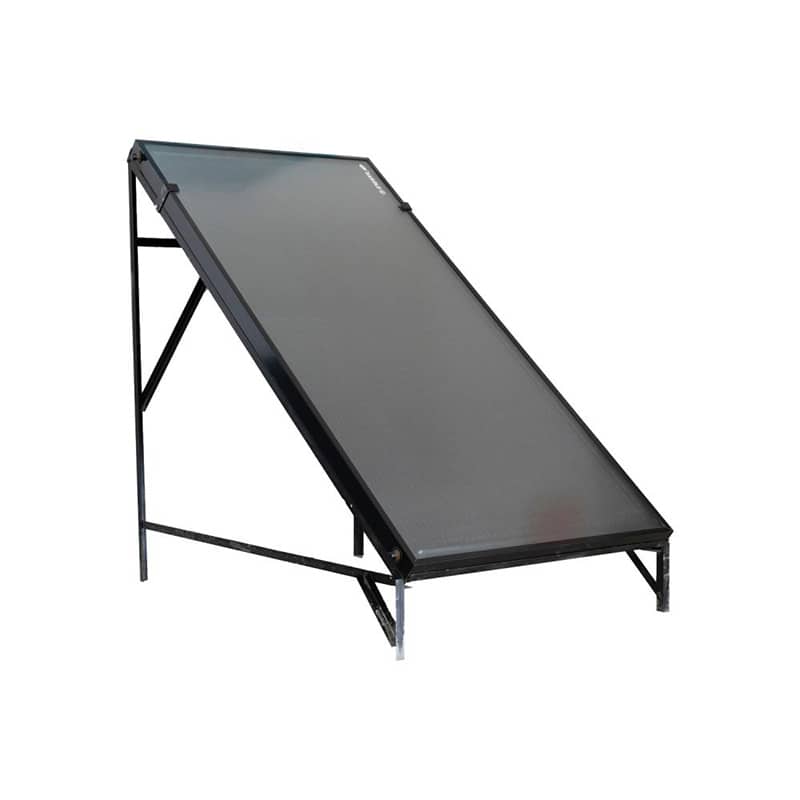

Split Solar Water Heater with Flat Plate Solar Collector
Main Features:
1. Most popular for solar water heating applications;
2. Works without over-heating problem to injure system;
3. Super anti-freezing performance to work below -40°C;
4. High pressure working with safe and stable performance;
5. Wide applications for solar water, room and floor heating;

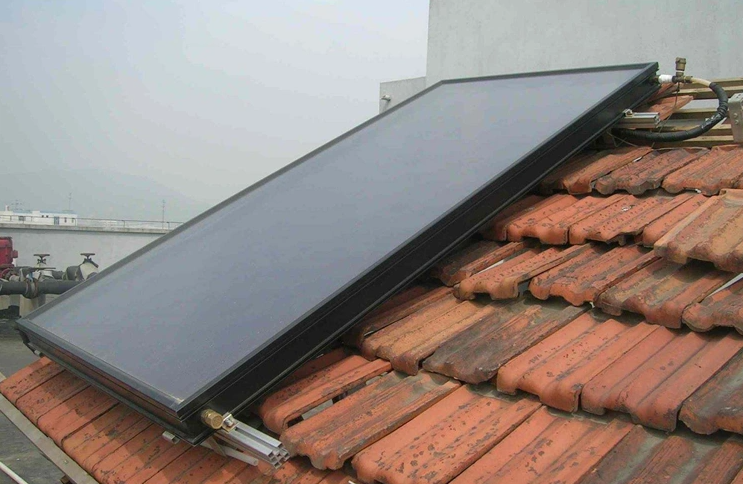

6. Strong adaptability to various roof structure installations;
Product Details
Main Features:
1. Most popular for solar water heating applications;
2. Works without over-heating problem to injure system;
3. Super anti-freezing performance to work below -40°C;
4. High pressure working with safe and stable performance;
5. Wide applications for solar water, room and floor heating;
6. Strong adaptability to various roof structure installations;
Technical parameters:
| Name of product | Split Pressurized Flat Plate Solar Water Heater |
| Specification of Collector | 2000X1000X80mm/2500x800x80 |
| Collection Area | 2m² |
| Absorption | >93% |
| Pressure Bearing Capability | More than 0.7MPa. |
| Plate Core | Copper and aluminum composite |
| Material of External Case | The thickened aluminum alloy frame, 0.4mm national standard galvanized zinc back plate, and 3.2mm low-iron tempered glass. |
| Insulation material | Polyester cotton |
| Insulation thickness | 35mm |
| Header pipe | ø22*0.6/TP copper |
| Grid pipe | ø12*0.5/TP copper |
| Frame Material | Aluminum alloy |
| Net weight | 37kg |
