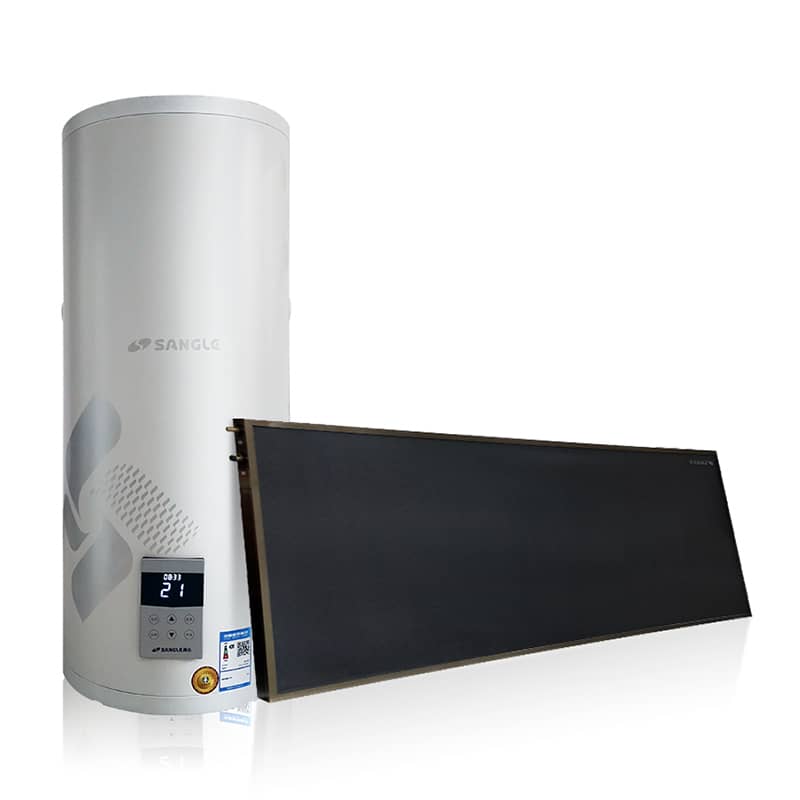

Split Flat Plate Solar Water Heater

Most popular for solar water heating applications;

Works without over-heating problem to injure system;

Super anti-freezing performance to work below -40°C.

Contact Now

Product Details

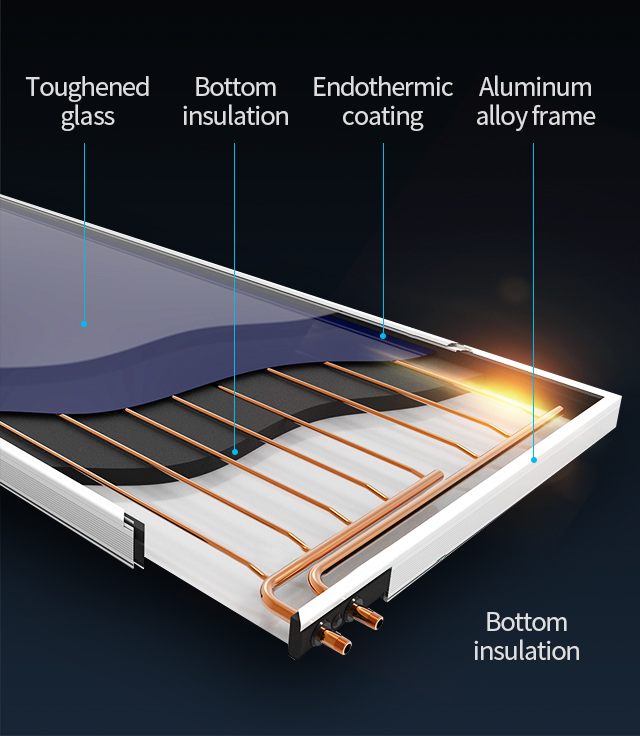

Flat plate solar collector

1. Most popular for solar water heating applications;

2. Works without over-heating problem to injure system;

3. Super anti-freezing performance to work below -40°C;

4. High pressure working with safe and stable performance;

5. Wide applications for solar water, room and floor heating;

6. Strong adaptability to various roof structure installations

Split Flat Plate Solar Water Heater

Split Enamel Water Tank

Dimensions: L-1112mm, DIA-468mm

Capacity: 100L

Heat transfer structure: full jacketed

Inner tank: SUS444

Outer tank: carbon steel

Insulation: high density polyurethane foam 40mm

Electric heater: 1500W

Control mode: push-button

Split Flat Plate Solar Water Heater

Technical parameters:

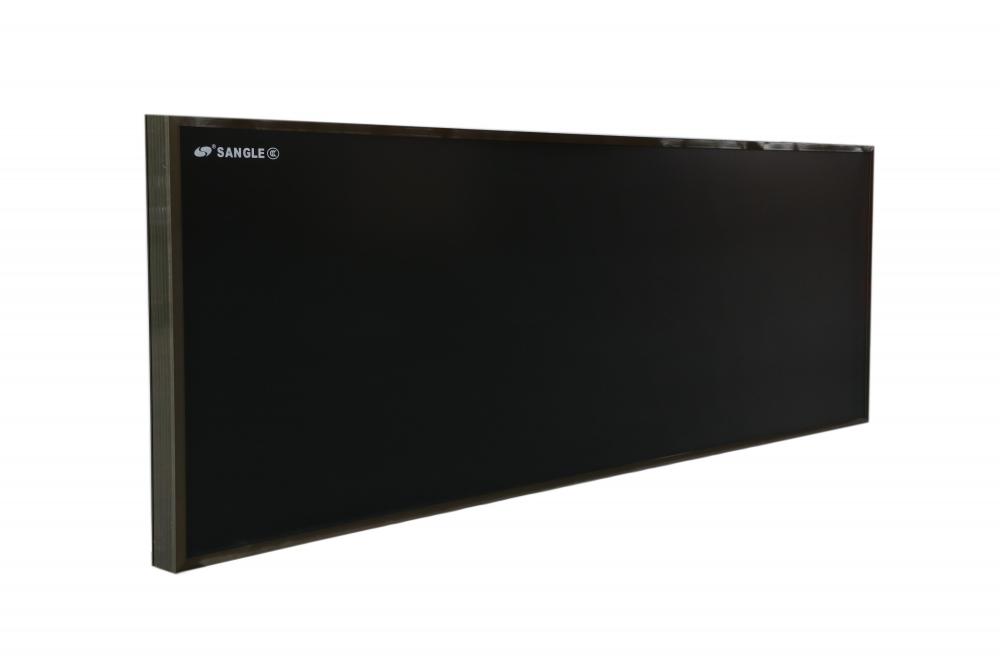

Name of product	Copper-aluminum Flat Plate Solar Collector
Specification of Collector	2000X1000X80mm/2500x850x80
Collection Area	2m²
Absorption	>93%
Pressure Bearing Capability	More than 0.7MPa.
Plate Core	Copper and aluminum composite

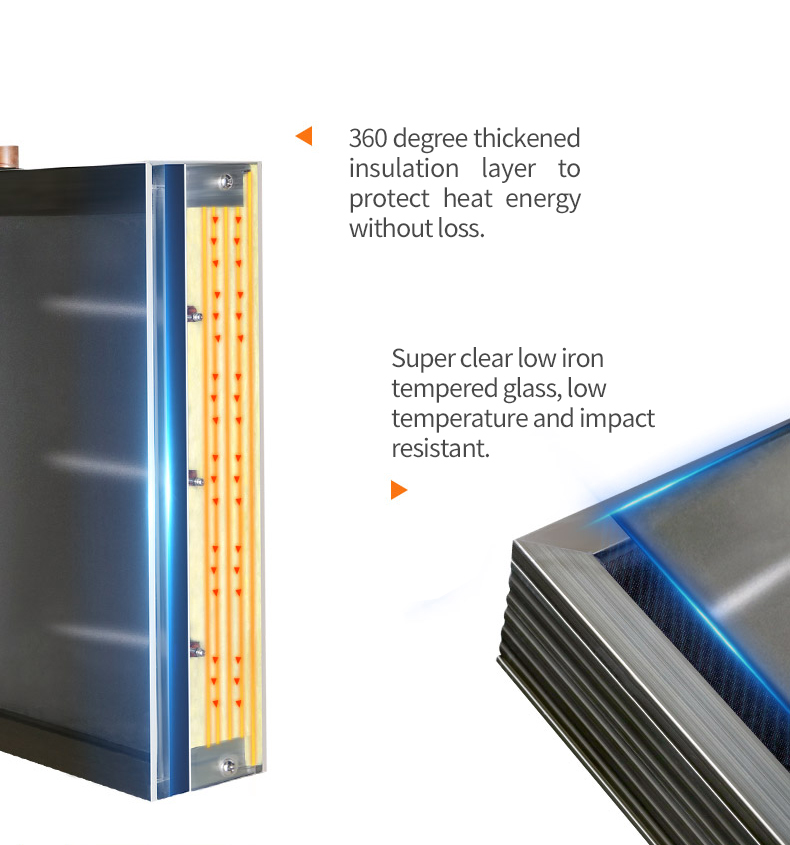

Material of External Case	The thickened aluminum alloy frame, 0.4mm national standard galvanized zinc back plate, and 3.2mm low-iron tempered glass.
Insulation material	Polyester cotton
Insulation thickness	35mm
Header pipe	ø22*0.6/TP copper
Grid pipe	ø12*0.5/TP copper
Frame Material	Aluminum alloy
Net weight	37kg
