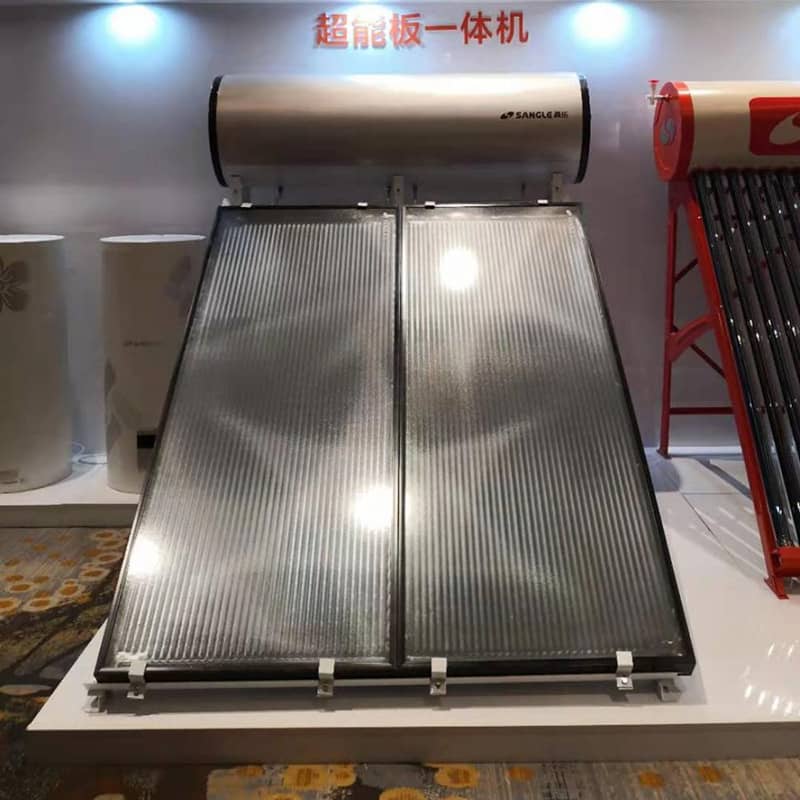

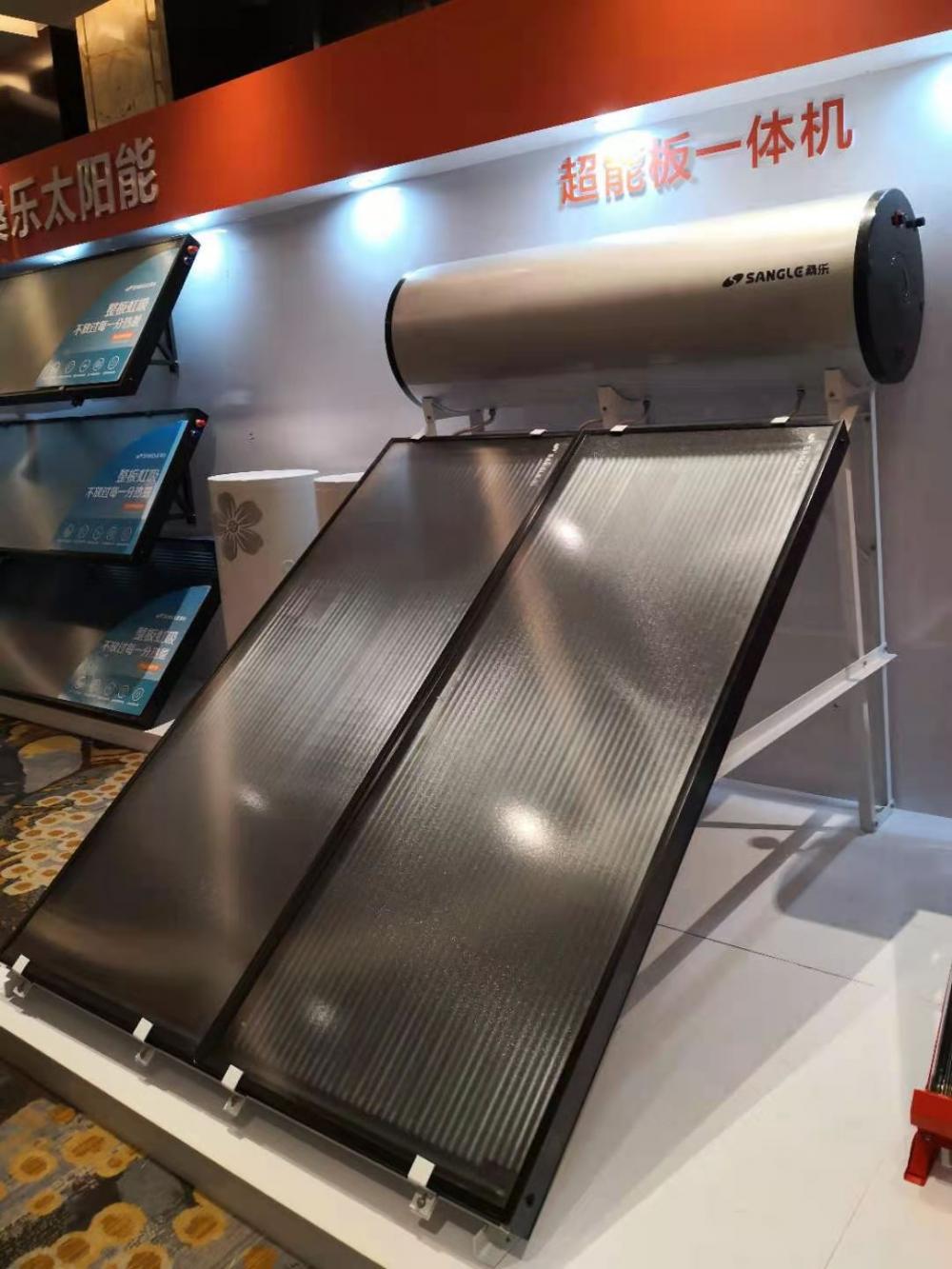

Pressurized High Efficiency Flat Plate Solar Water Heater 200L

Heat collection two-in-one;

Layered hot water;

Serial and parallel combination;

Galvanized angle steel support

  Contact Now
Product Details

Main Feature:

1.Heat collection two-in-one: unique and innovative jacket design full flow channel flat heat collector, with more efficient heat exchange and faster temperature rising.

2.Layered hot water: optimizing water inlet and outlet structure, hot water layered effectively, with high hot water output ratio.

3.Serial and parallel combination: multiple systems can be connected in a serial/parallel way flexibly, thus meeting extra-large water consumption demand.

4.Galvanized angle steel support: it adopts concise excellent galvanized angle steel support, with simple and rapid installation.

Product Description:

Water tank:

Name of ProductHorizontal Jacket Water Tank
Capacity200L
External DimensionsØ520X1694
Weight50KG
External DiameterØ520
Inner Tank DiameterØ426
Insulation Material45mm polyurethane
Collector:(2 Pieces)
Name of ProductFull Flow Channel Flat Type Heat Collector
External Dimensions (mm)2000X800X80*2
Total Area (m²)3.2
Daylighting Area (m²)2.98
Working Pressure (Mpa)0.2
Product Weight (kg)62
Material of Plate CoreSUS430 ultra-pure stainless steel
Circulating InterfaceBackward V-type heat exchange cavity
Coating Layer of Plate Coremetal-electric medium hybrid dielectric structure
Transparent Cover Plate3.2mm ultra-white low-iron cloth-texture tempered glass
Frame Profile1.0mm electrophoresis black aluminum alloy
Frame Bottom Plate0.35mm galvanized and aluminized silicon steel plate
Thermal Insulation Material35mm heat resistance polyester cotton
